SR4x8
- FANUC control with an easy-to-use interface.
- 16 position rotary tool changer for quick tool exchange between cuttings.

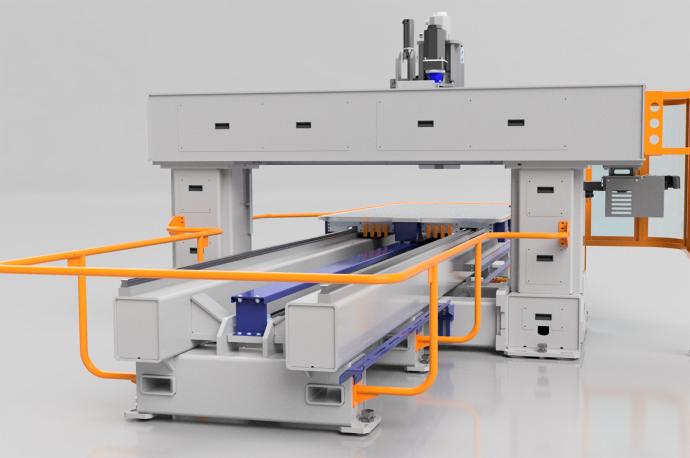

- Fixed gantry design for accuracy and repeatability.
Product Details
SR4x8 is a versatile and compact 3-axis CNC router. This fixed gantry router with moving table design allows access to all sides of the work area for easy material loading and unloading. It also proves easy integration of material handling systems and other automation options. The SR4x8 is ideal for processing any type of wood and excels in nested panel processing for less material waste. But can also tackle cutting non-ferrous metals and advanced materials. The SR4x8 is an excellent choice for customers who want a high production machine that offers flexibility when needed.
Standard features:

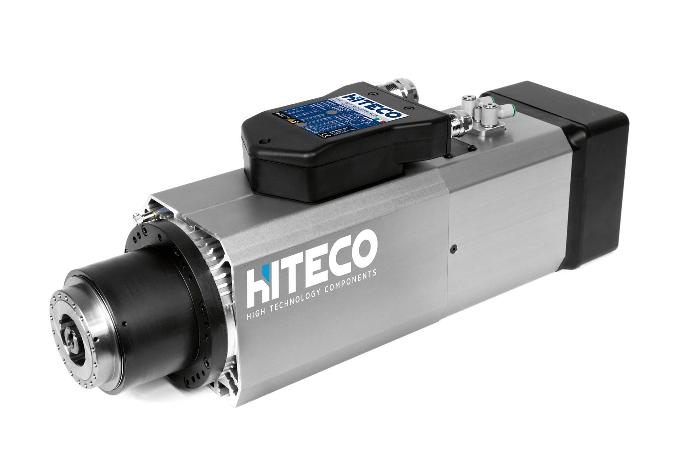

- Air-cooled spindle
- Aluminum grid table with spoil board

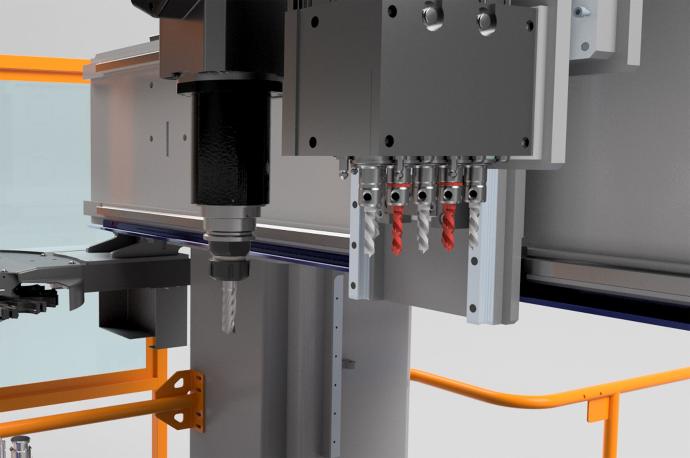

- Drill block with 9 drilling spindles
Available options:
- Optional multi vacuum zone table with 8 independent zones.
- Off-feed table.
Product Specs
|
|
Inches |
Metric |
|
Table Size |
97.5" X by 49" Y |
2476.5mm X by 1244.6mm Y |
|
Spindle Speed |
24,000 RPM |
|
|
Spindle Power |
13.4 hp |
10kW |
|
Rapid Traverse |
X axis = 142.8ft/min Y axis = 142.8ft/min Z Axis = 35.7ft/min |
60m/min 60m/min 15m/min |
|
Tool Changer Capacity |
16 position rotary |
|
Faster production runs.

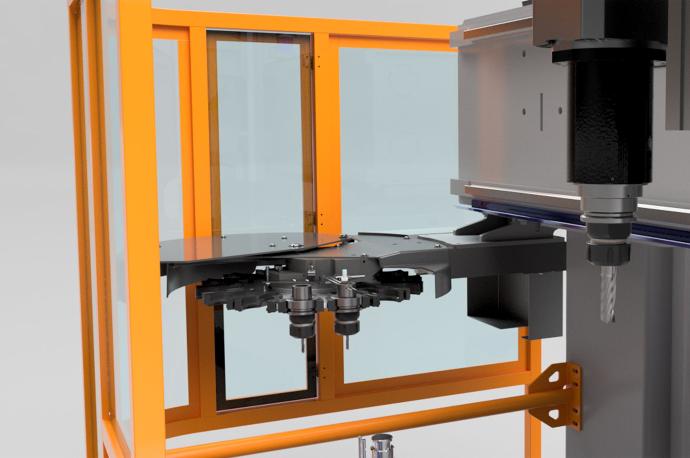

Attached rotary tool changer for quicker tool exchanges between cuts.
Quick and precise.
13.4 hp spindle can increase production, lower costs, and improve overall efficiency.
Durable construction.
FEA tested design paired with solid welded steel construction offers little vibration throughout the machine for precise cutting.
