RH4x8
- FANUC control with an easy-to-use interface.
- 16 position rotary tool changer for quick tool exchange between cuttings.
- Fixed gantry design for accuracy and repeatability.
Product Details
RH4x8 is a compact and powerful 3-axis CNC router offering high-performance and flexibility. The heavy machine frame made of welded steel construction provides rigidity for superior accuracy. Great for processing any type of wood, especially rougher plywood sheets, but also capable of cutting non-ferrous metals, and advance materials. Ideal for customers who want to make an investment in quality and growth.
Standard features:
- 4 Roller hold down cylinders

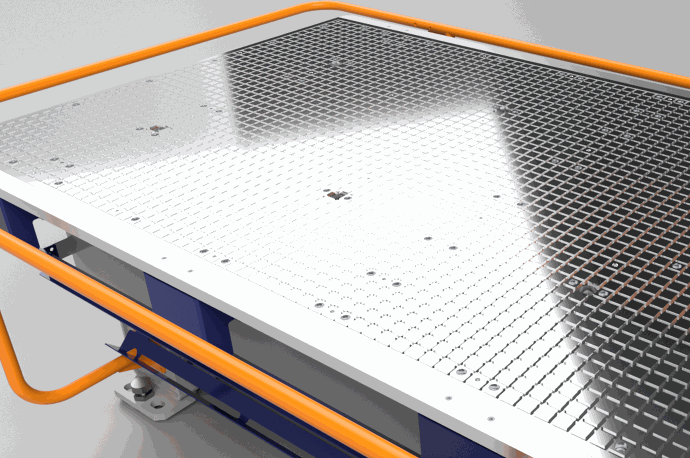

- Aluminum grid table with spoil board
- Drill block with 9 drilling spindles
- Dust collection Pusher Bar
Available options:

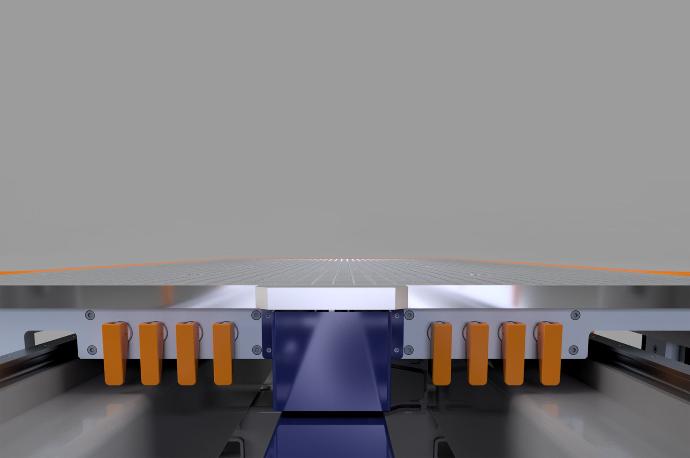

- Optional multi vacuum zone table with 8 independent zones.
- Off-feed table.
Product Specs
|
|
Inches |
Metric |
|
Table Size |
97.5" X by 49" Y |
2476.5mm X by 1244.6mm Y |
|
Spindle Speed |
24,000 RPM |
|
|
Spindle Power |
13.4 hp |
10kW |
|
Rapid Traverse |
X axis = 142.8ft/min Y axis = 142.8ft/min Z Axis = 35.7ft/min |
60m/min 60m/min 15m/min |
|
Tool Changer Capacity |
16 position rotary |
|
Faster production runs.
Attached rotary tool changer for quicker tool exchanges between cuts.
Quick and precise.

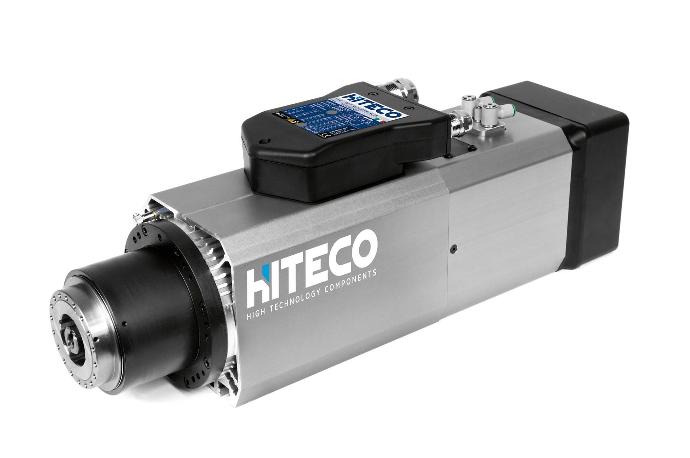

13.4 hp spindle can increase production, lower costs, and improve overall efficiency.
Durable construction.

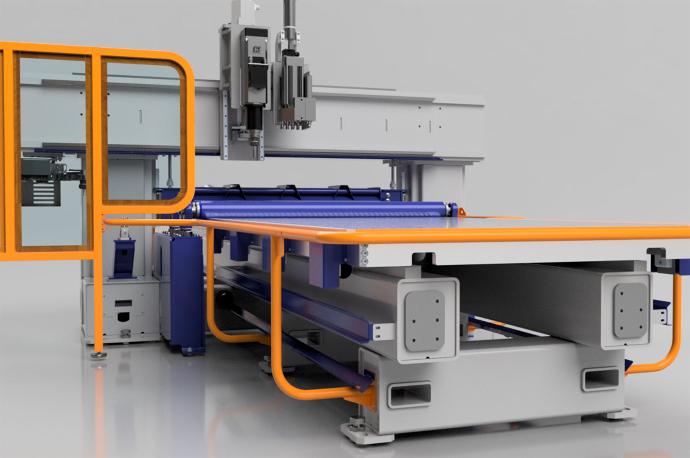

FEA tested design paired with solid welded steel construction offers little vibration throughout the machine for precise cutting.
